Produk

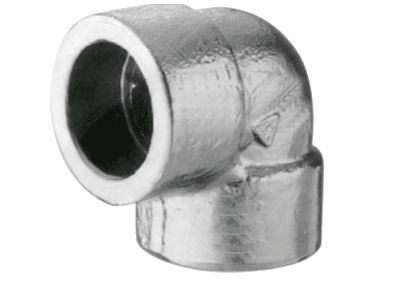

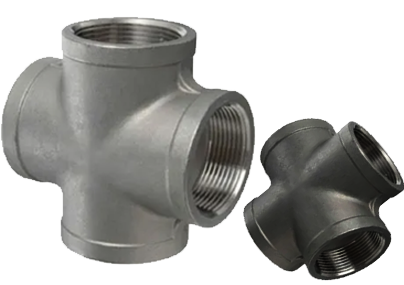

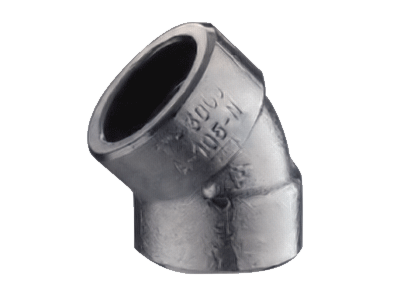

Elbow 45 Deg, Elbow 90 Deg, Tee, Cross, Union, Coupling, Half-Coupling, Cap,

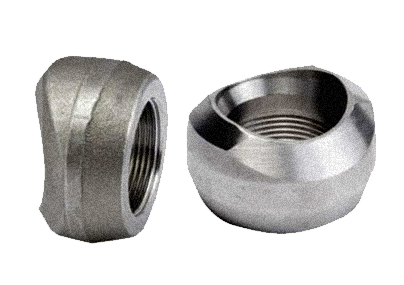

Boss, Plug, Hex Nipple, Reducing Insert, Swage Nipple, Weldolet, Sockolet, Threadolet

Standar

ASME/ANSI B16.11, BS 3799, MSS SP-43, MSS SP-95

Rating

2000 (Threaded Only), 3000, 6000, 9000 (Socket Weld Only)

Material

ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

Connection

Socket Weld, Threaded

Size

1/8 — 1/4 — 3/8 — 1/2 — 3 /4 — 1 — 1¼ — 1 ½ — 2 — 2½ — 3 — 4

Permukaan

Cat Hitam, Pernis Minyak
